📌 Product Overview

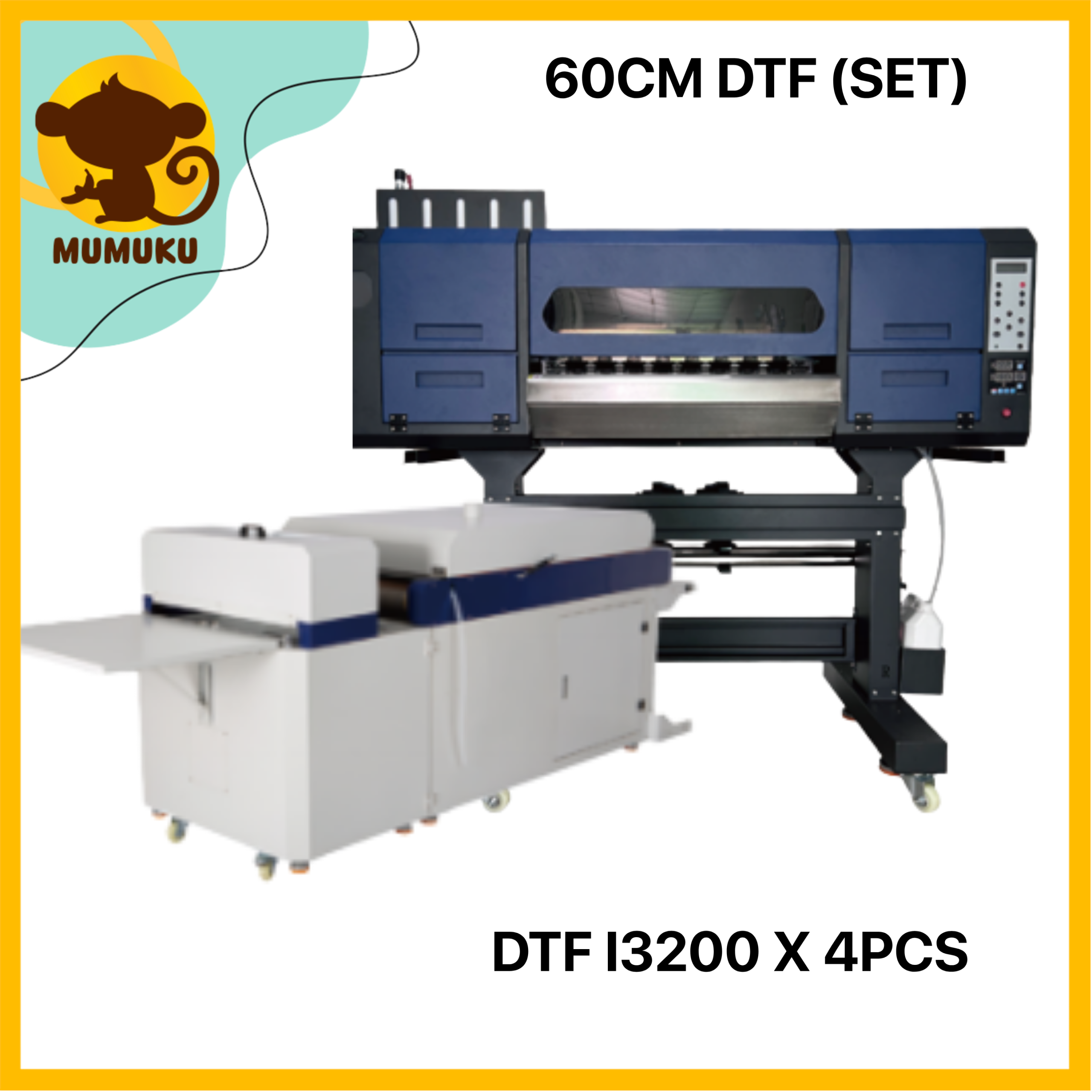

The SG-A6504 is a 4-printhead industrial-grade DTF (Direct to Film) printer designed for fast production output and long-hour continuous operation.
It uses DTF pigment ink and prints onto PET film, suitable for mass garment customization.
When paired with the Automatic Powder Shaker & Curing Machine, it allows full automated printing → powdering → heating, improving production speed and consistency.
🖨 Printer Specifications
Specification Details
Model SG-A6504
Print Heads 4 Heads
Ink Type DTF Pigment Ink
Power Supply 220V / 110V
RIP Software Support Maintop, PhotoPrint, CADlink, etc.
Print Interface Gigabit Network Interface
Print Film Type PET DTF Film
Print Width 600mm
Printing Speed
Mode Output Speed
4-Pass 18–28 m²/hour
6-Pass 12–20 m²/hour
📦 Machine Size & Weight
Unit Size (mm) Weight
Printer Size 1700 × 750 × 1510 mm 165 kg
Printer Packing Size 1800 × 880 × 730 mm 190 kg
⚙️ Optional Powder Shaker Models
Model Function Size (mm) Weight
Model A Shaker Large Auto Powder Machine 2700 × 960 × 1170 mm 230 kg
Model A Packing 2480 × 1000 × 1280 mm 300 kg
Model B Shaker Medium Auto Powder Machine 2200 × 1050 × 1100 mm 200 kg
Model B Packing 2120 × 1100 × 1230 mm 260 kg
