Product Title / Theme

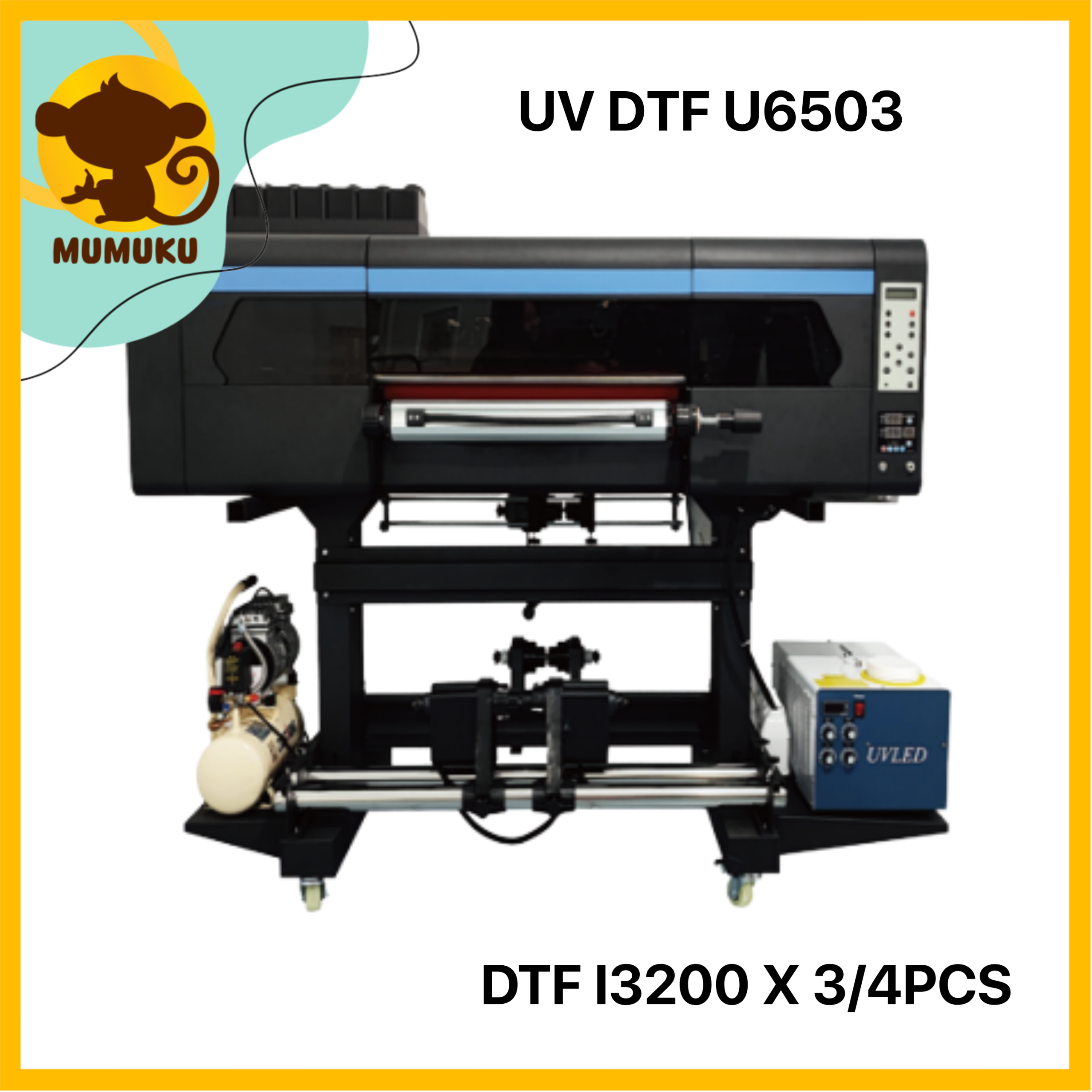

SG-U6503 / SG-U6504 UV DTF Printer
High-Resolution UV Transfer System for Hard-Surface Customization
Short Product Description
The SG-U6503 / SG-U6504 is a professional-grade UV DTF (Direct-to-Film) printer designed for custom decoration on glass, metal, plastic, leather, wood, ceramics, and more. With 3-head (SG-U6503) or 4-head (SG-U6504) configurations, it delivers sharp detail, vibrant color, and strong adhesion for durable and premium-quality transfers.
Detailed Product Description
The SG-U6503 / SG-U6504 utilizes UV-curable ECO ink and prints on UV DTF A/B film, enabling a peel-and-stick transfer process that eliminates the need for heat pressing. This system allows users to apply full-color graphics directly to irregular surfaces, curved items, and textured materials.
Featuring an adjustable print height (0–6mm) and a 600mm print width, it supports a wide range of product sizes, including bottles, accessories, packaging items, nameplates, electronic devices, signage plates, souvenir items, and more.
The Gigabit network interface ensures stable data transmission for continuous production environments, while the 1.5L bulk ink supply supports long-hour printing with lower ink replacement frequency.
Key Features
Available in 3-head or 4-head configurations
UV DTF A/B film system — no heat press required
Prints on glass, acrylic, stainless steel, ceramic, leather, phone cases, gifts, etc.
Adjustable print height: 0–6mm for flat and slightly uneven surfaces
1.5L bulk ink supply for long-run production
Strong ink adhesion, water-resistant & scratch-resistant output
Suitable for custom shops, packaging suppliers, souvenir makers, and branding studios
Technical Specifications
Model SG-U6503 SG-U6504
Print Heads 3 Heads 4 Heads
Print Width 600mm 600mm
Printing Speed 4-pass: 6.5–10m²/h ; 6-pass: 5.8–7m²/h Same
Print Height 0–6mm Adjustable 0–6mm Adjustable
Ink Type UV ECO Ink UV ECO Ink
Print Media UV DTF A/B Film UV DTF A/B Film
Ink Capacity 1.5L Bottle Supply 1.5L Bottle Supply
Power Requirement AC 220V, 50/60Hz, 1700W Same
Working Environment 15–30°C / 40–80% RH Same
Interface Gigabit Network Interface Same
Printer Size 1800 × 700 × 1550mm (242kg) Same
Packing Size 1910 × 1450 × 800mm (311kg) Same
